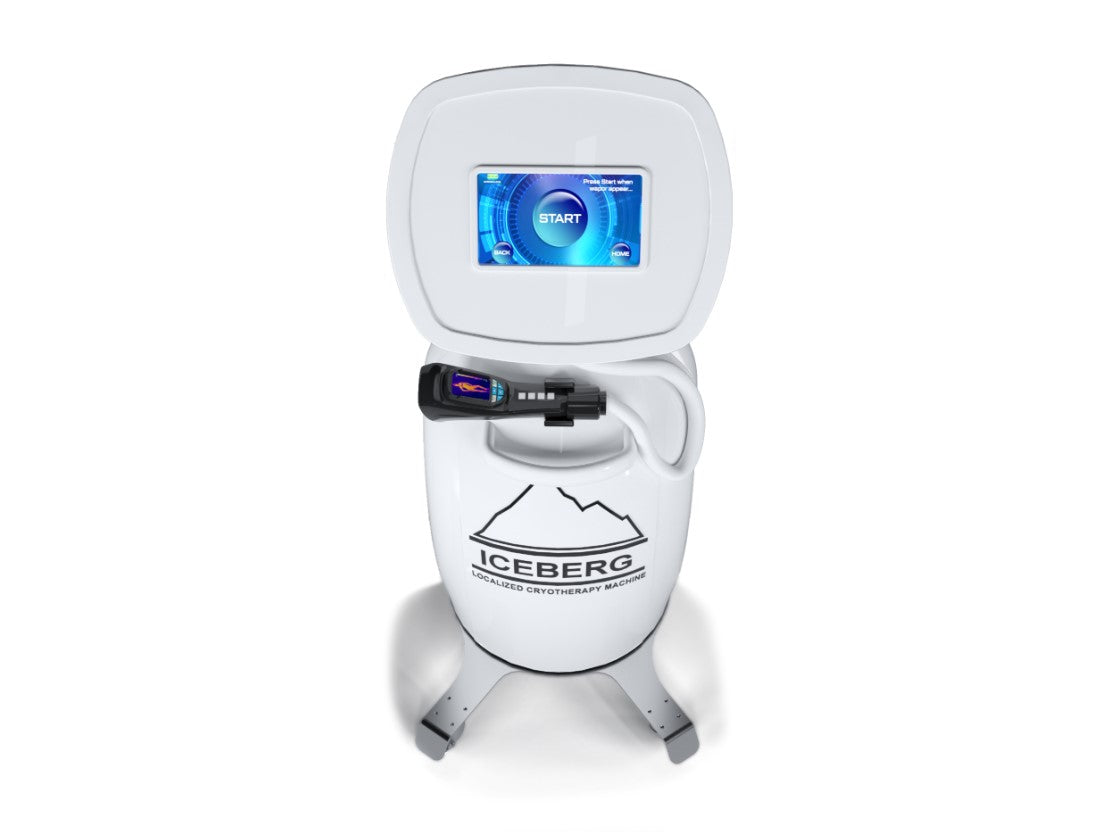

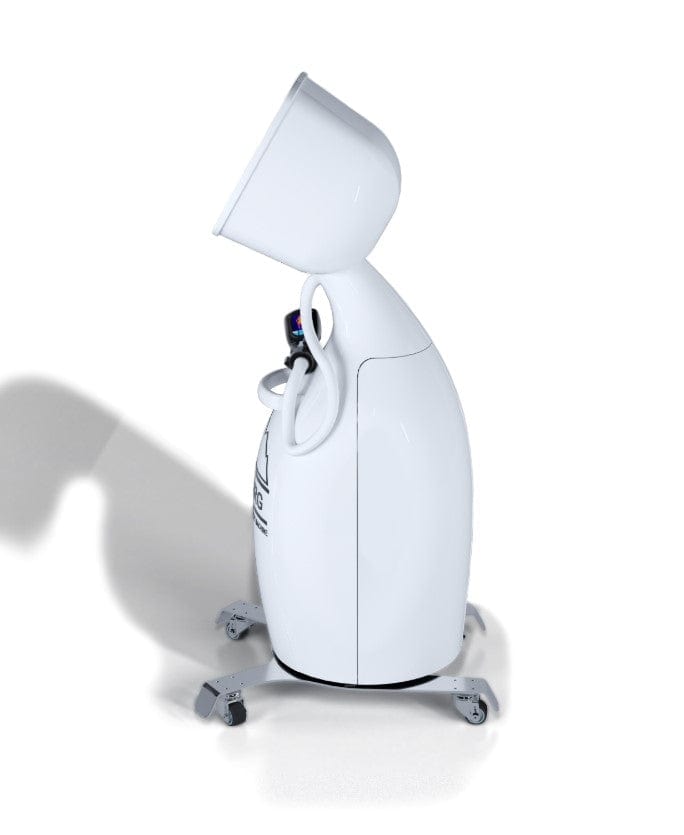

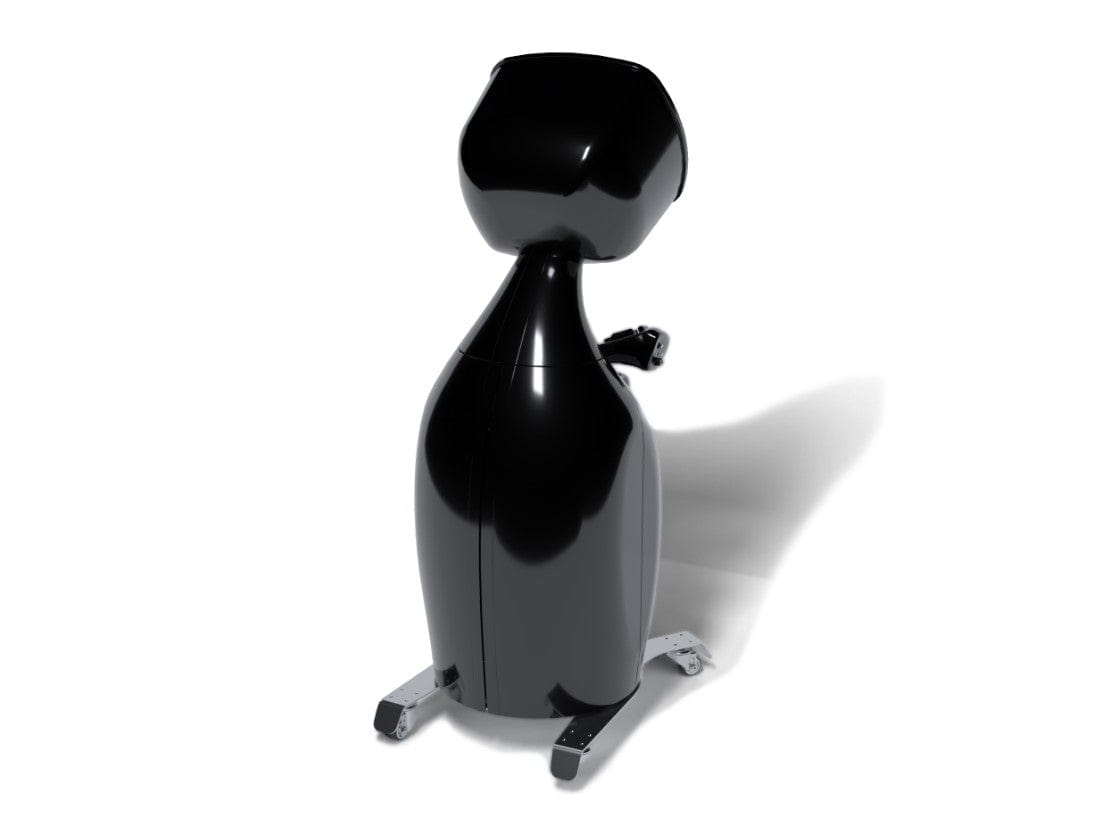

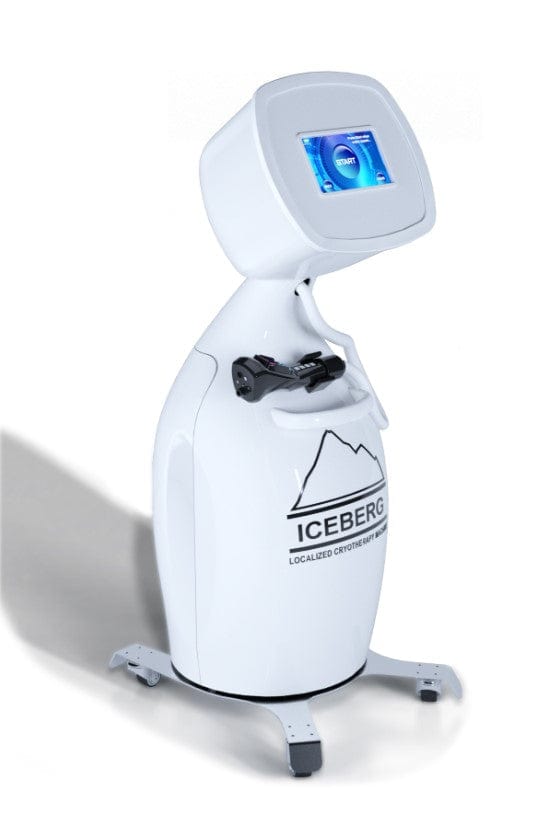

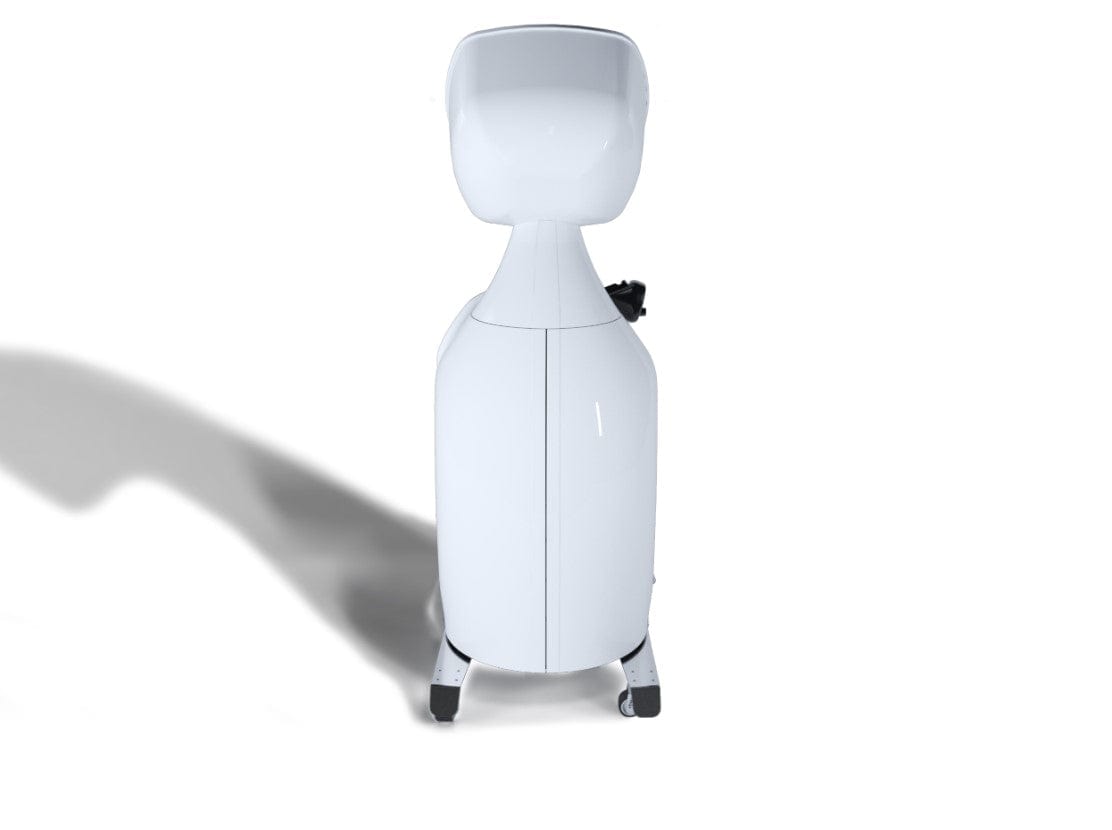

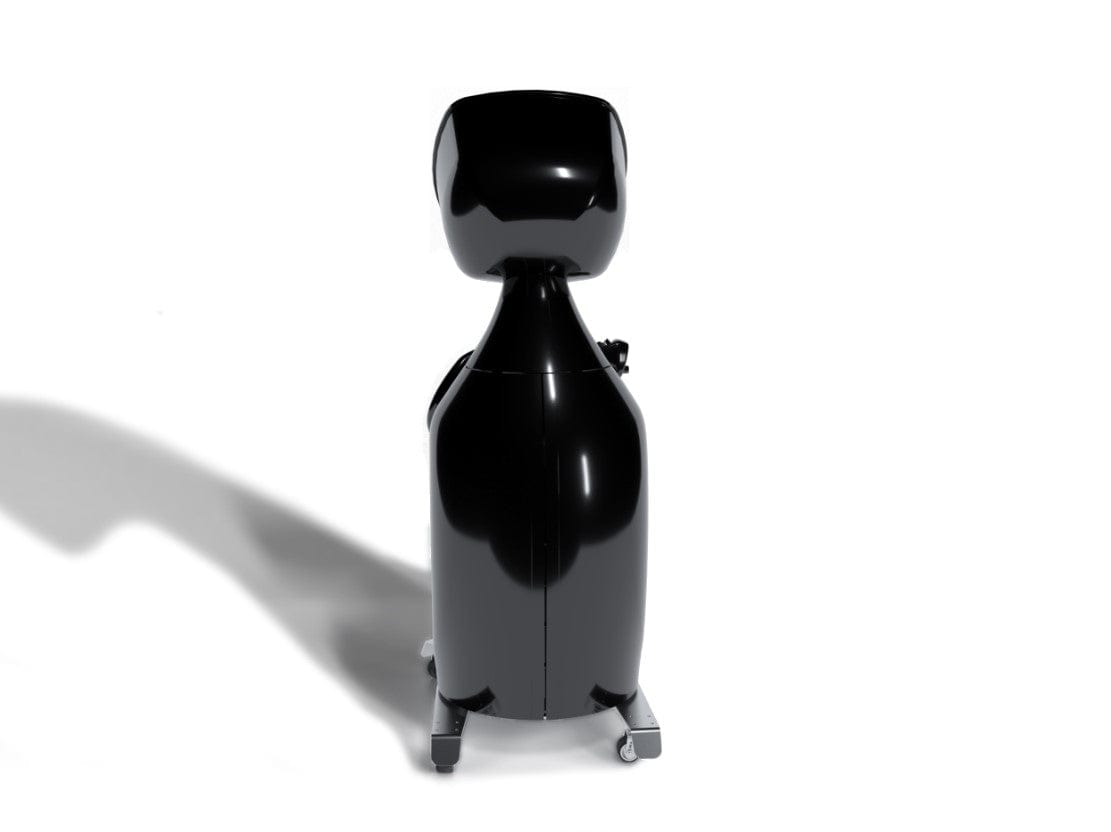

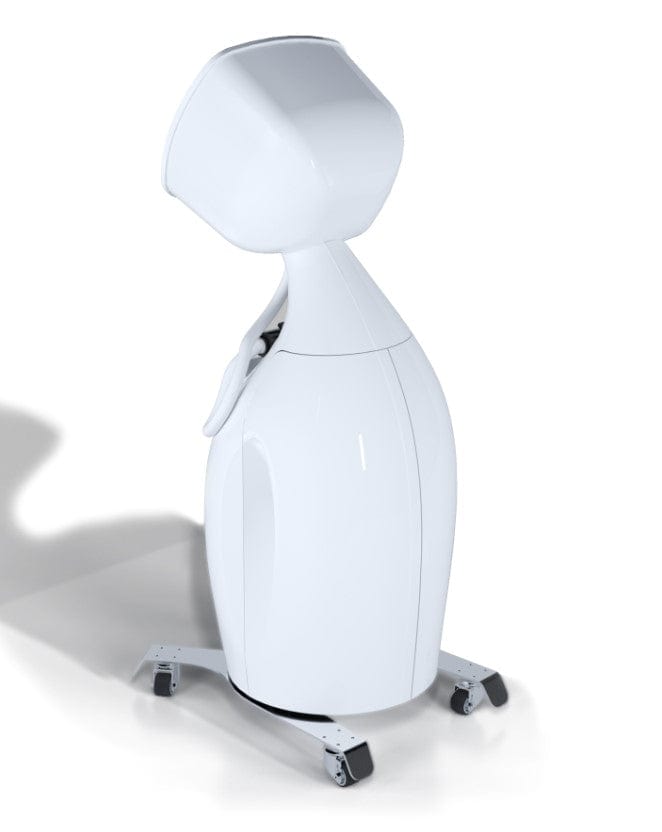

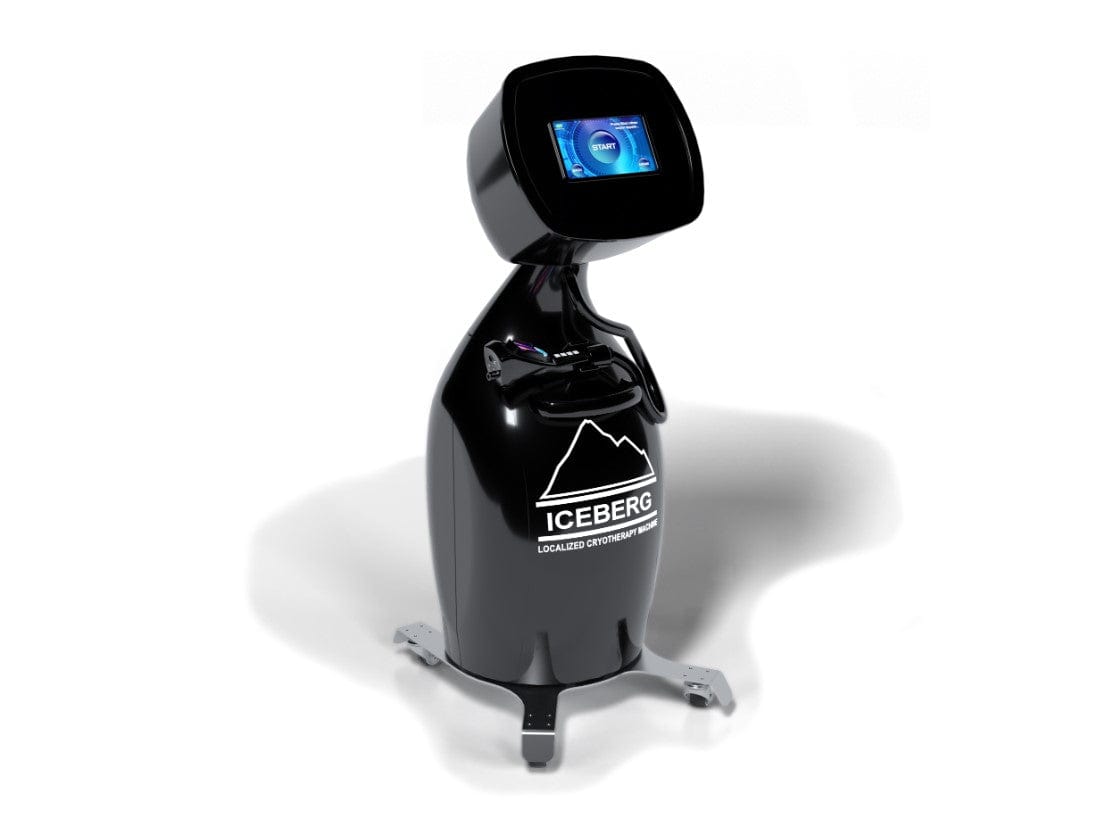

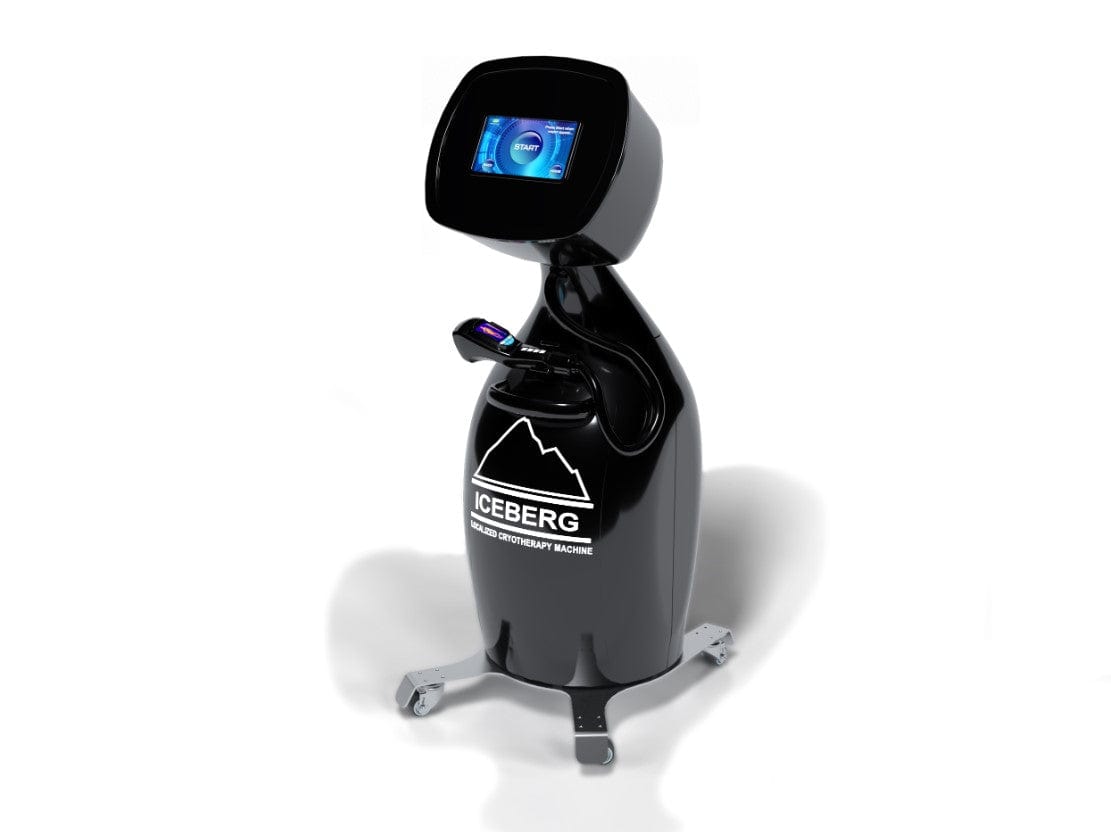

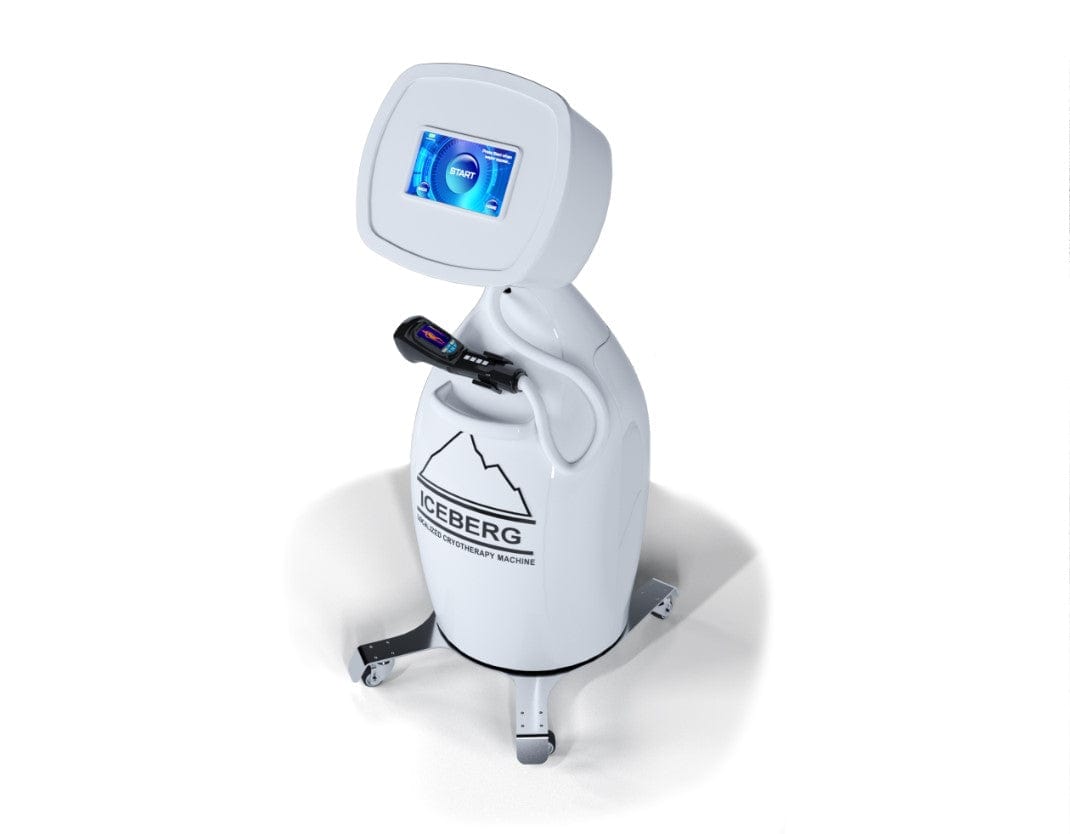

Cryonick (VacuActivus) Precision Sub-Zero Liquid Nitrogen Vaporization, 25-Liter Internal Cryo Vessel, Onboard IR Thermal Imaging Safety Wand, Advanced High-Velocity Aesthetic & Sports Rehab Station

VacuActivus Iceberg 25L Local Gas Cryotherapy System (Precision Sub-Zero Liquid Nitrogen Vaporization, 25-Liter Internal Cryo Vessel, Onboard IR Thermal Imaging Safety Wand, Advanced High-Velocity Aesthetic & Sports Rehab Station) is a professional mobile workstation designed for aesthetic spas, sports medicine clinics, rehabilitation centers, and wellness facilities. Featuring a 25-liter liquid nitrogen vessel, an 11-inch HD touchscreen, precision nitrogen vapor delivery, and an integrated infrared thermal imaging wand, the system provides controlled localized cooling with advanced safety monitoring and flexible treatment operation.

Specifications

• Brand: VacuActivus

• Product Model: Iceberg 25L Localized Cryo / SKU: Iceberg25LLocalCryo

• Dimensions: 28.00" L × 22.00" W × 55.00" H

• Net Weight: Approximately 330.00 lbs

• Gross Weight: Approximately 450.00 lbs

• Nitrogen Vapor Temperature: Down to -160°C (-256°F)

• Internal Tank Capacity: 25-Liter Liquid Nitrogen Dewar Vessel

• Gas Consumption: 1.0 to 2.0 kg liquid nitrogen per treatment session

• Power Consumption: 2.5 kW average operating load

• Power Supply: Configured for 220V/50Hz or 110V/60Hz

• Circuit Requirement: Dedicated 20A circuit

• IR Camera: 60 × 60 resolution (3,600 pixels) with 0.15°C thermal sensitivity

Features

• Precision Nitrogen Vapor Delivery: Produces a focused stream of sub-zero nitrogen vapor for localized cooling applications.

• 25-Liter Integrated Dewar: Built-in liquid nitrogen vessel provides a compact, mobile solution for professional environments.

• Infrared Thermal Imaging Wand: Continuously monitors skin surface temperature during operation using an integrated non-contact infrared camera.

• 11-Inch HD Touchscreen: Digital interface allows operators to adjust gas flow rates and session settings.

• Four Gas Flow Levels: Multiple selectable nitrogen flow settings for application flexibility.

• Safety Systems: Includes emergency stop switch, low liquid nitrogen alarm, and insulated delivery hoses.

• Flexible Delivery Hose: 1.5-meter insulated silicone hose with anti-condensation braided sleeve enhances operator mobility.

Package Contents

• 1 × VacuActivus Iceberg 25L Localized Liquid Nitrogen Cryotherapy Workstation Base

• 1 × 1.5-Meter High-Insulated Vapor Delivery Hose Assembly

• 1 × Integrated Non-Contact Infrared Thermal Imaging Handle

• 1 × Set of Interchangeable Multi-Diameter Vapor Focus Nozzle Tips

• 1 × Pre-Wired 11-Inch High-Resolution Touchscreen Control Panel

• 1 × Heavy-Gauge Grounded AC Power Supply Cable

• 1 × User Manual and Operational Guide

Maintenance

• Liquid Nitrogen Filling: Fill the internal 25-liter dewar using an appropriate transfer line while wearing insulated cryogenic gloves and a face shield.

• Operation: Maintain a distance of 4 to 6 inches between the nozzle and the treatment area while keeping the nozzle in continuous motion.

• Daily Maintenance: Run the warm-air purge and drying sequence after each operating session to clear moisture from the delivery lines.
